The mobile solution for precise data collection, inspection, or exploration in hard-to-reach areas

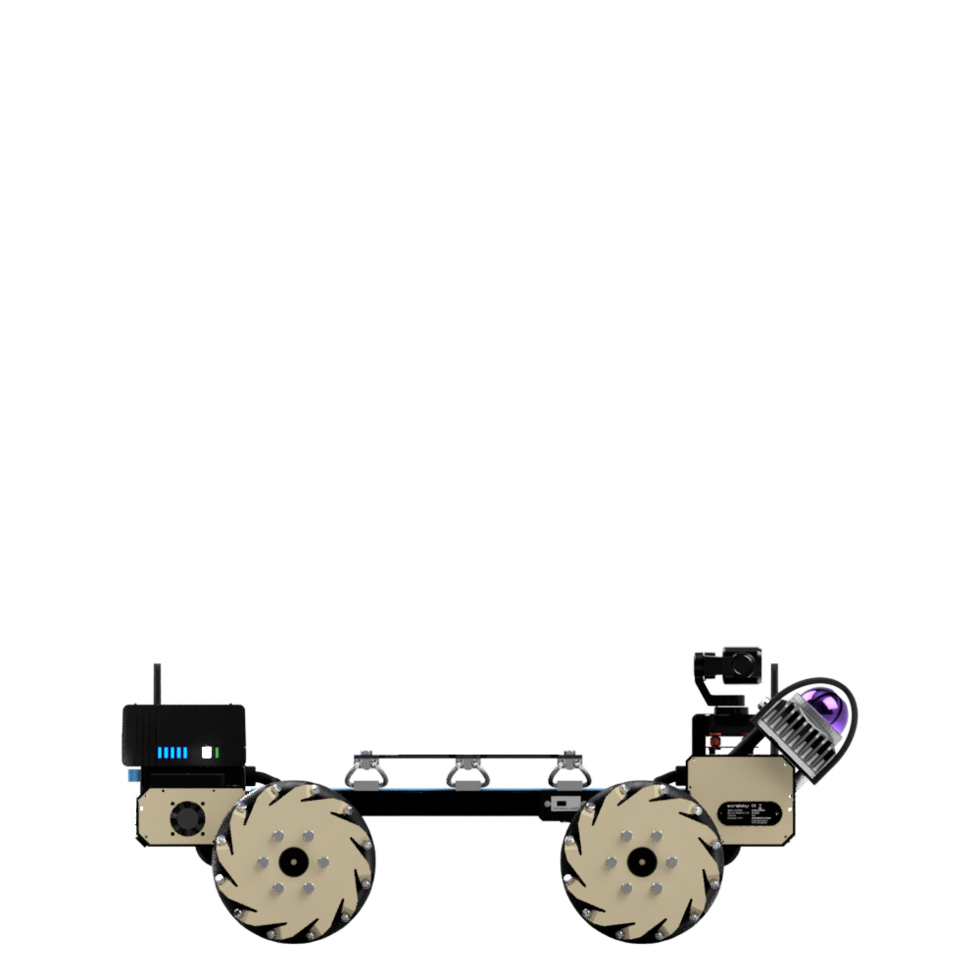

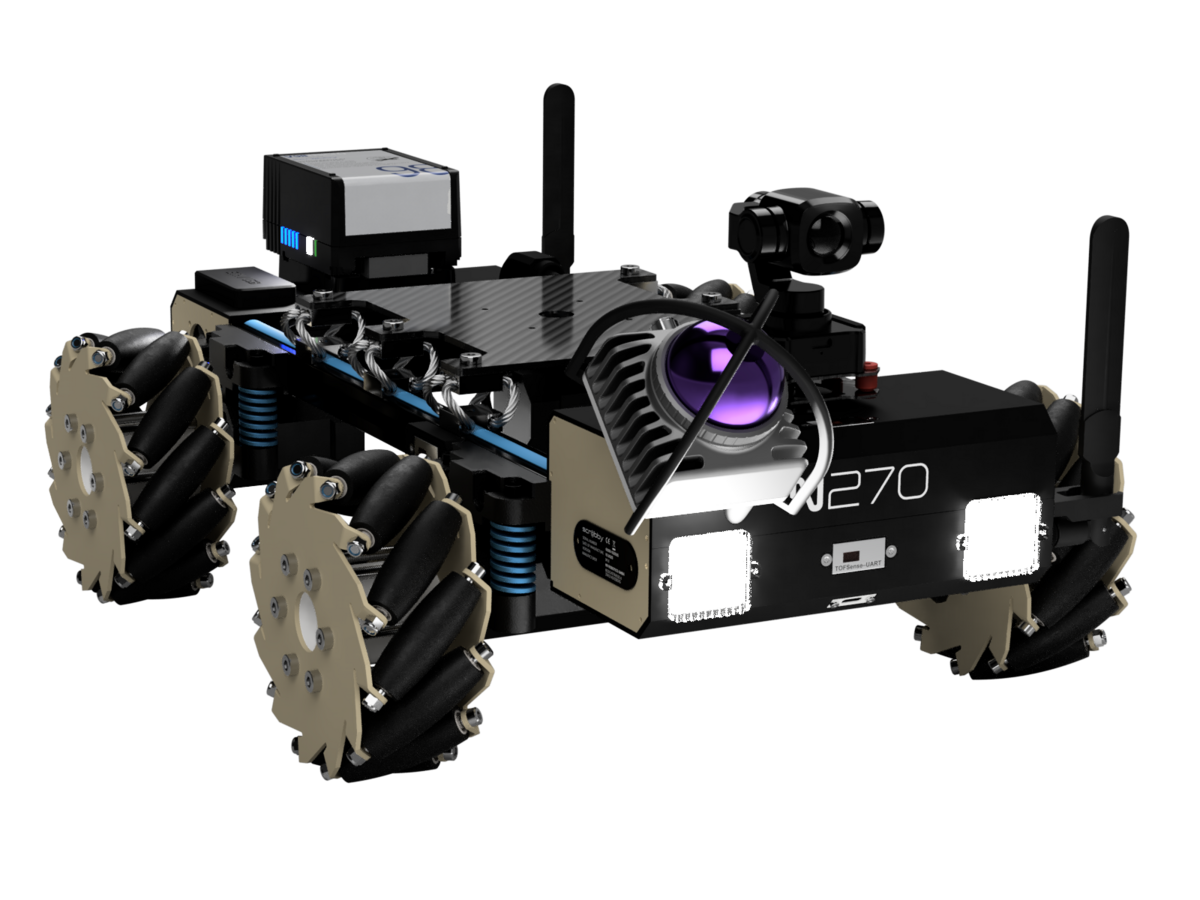

The N270 UGV is a remote-controlled platform that allows you to safely and efficiently transport scanners, cameras, or sensors to locations that are difficult to reach using conventional means — whether for surveying, inspection, or exploration.

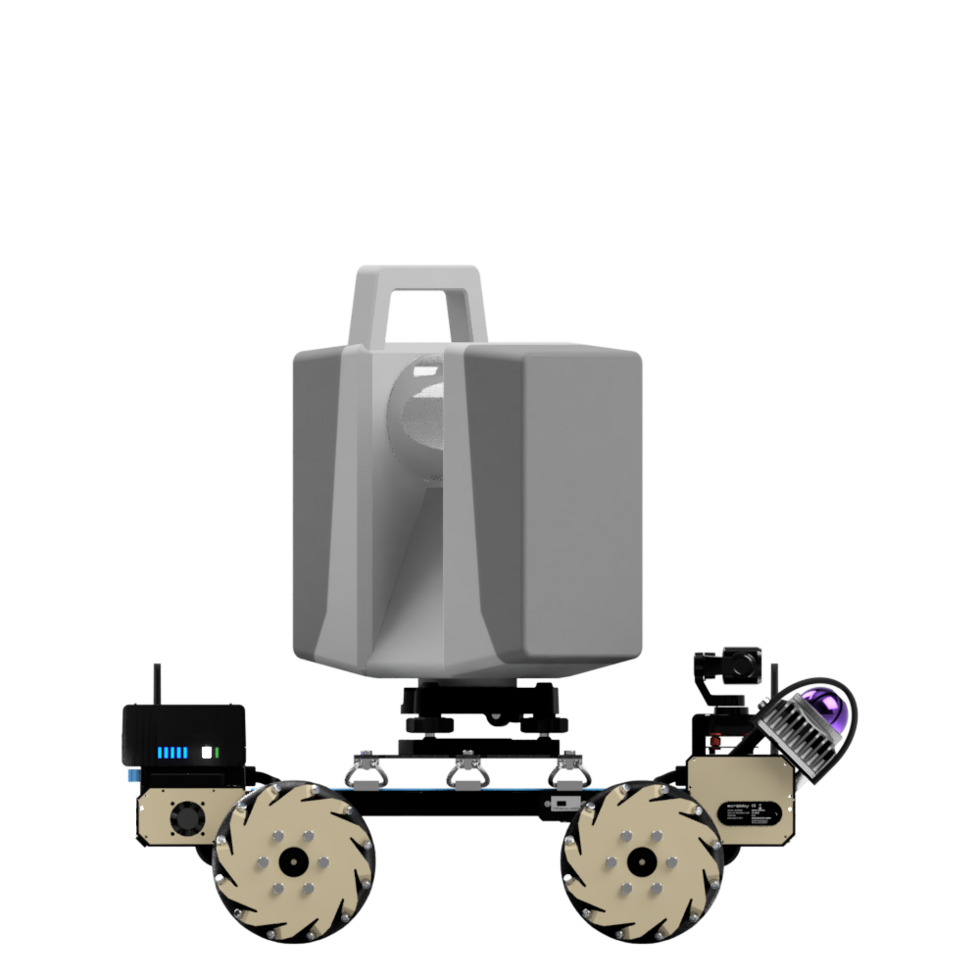

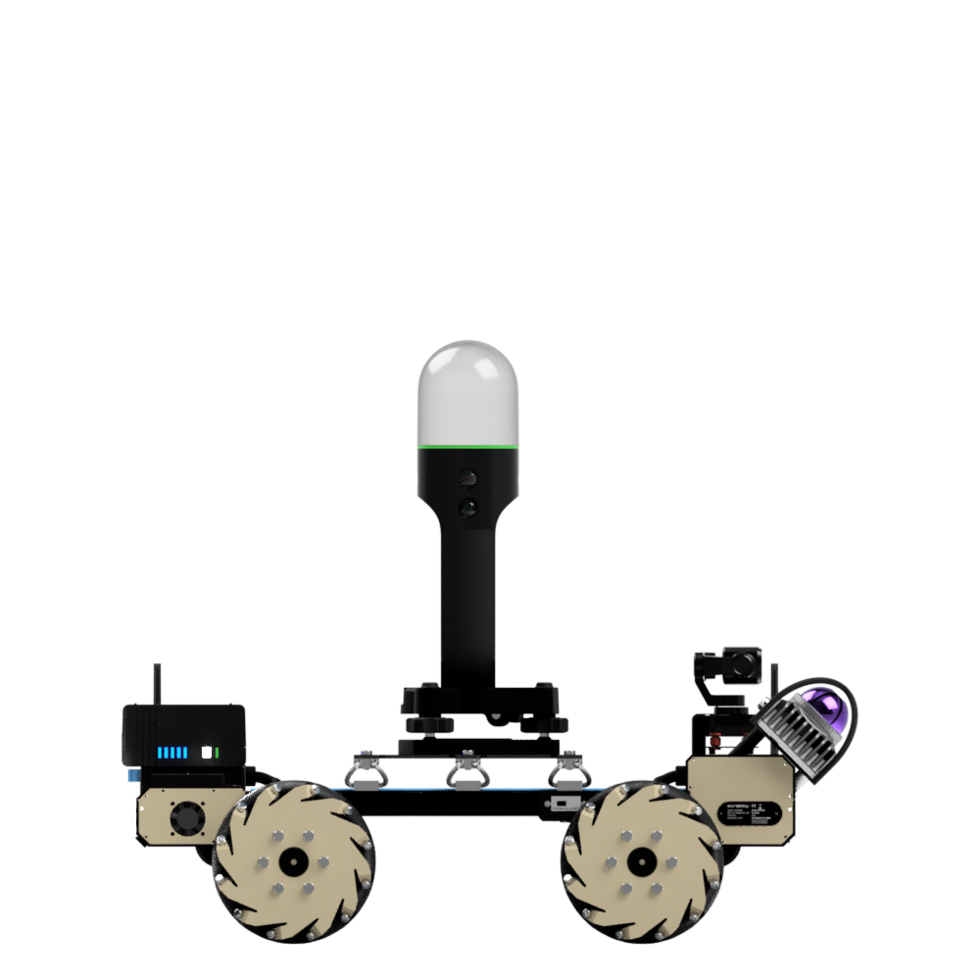

Compact, robust, and flexible, the N270 UGV combines high mobility with precise control. The platform is compatible with laser scanners from leading manufacturers such as Z+F, Trimble, FARO, Leica, RIEGL, YellowScan, and many more — ideal for demanding applications in a wide variety of environments.

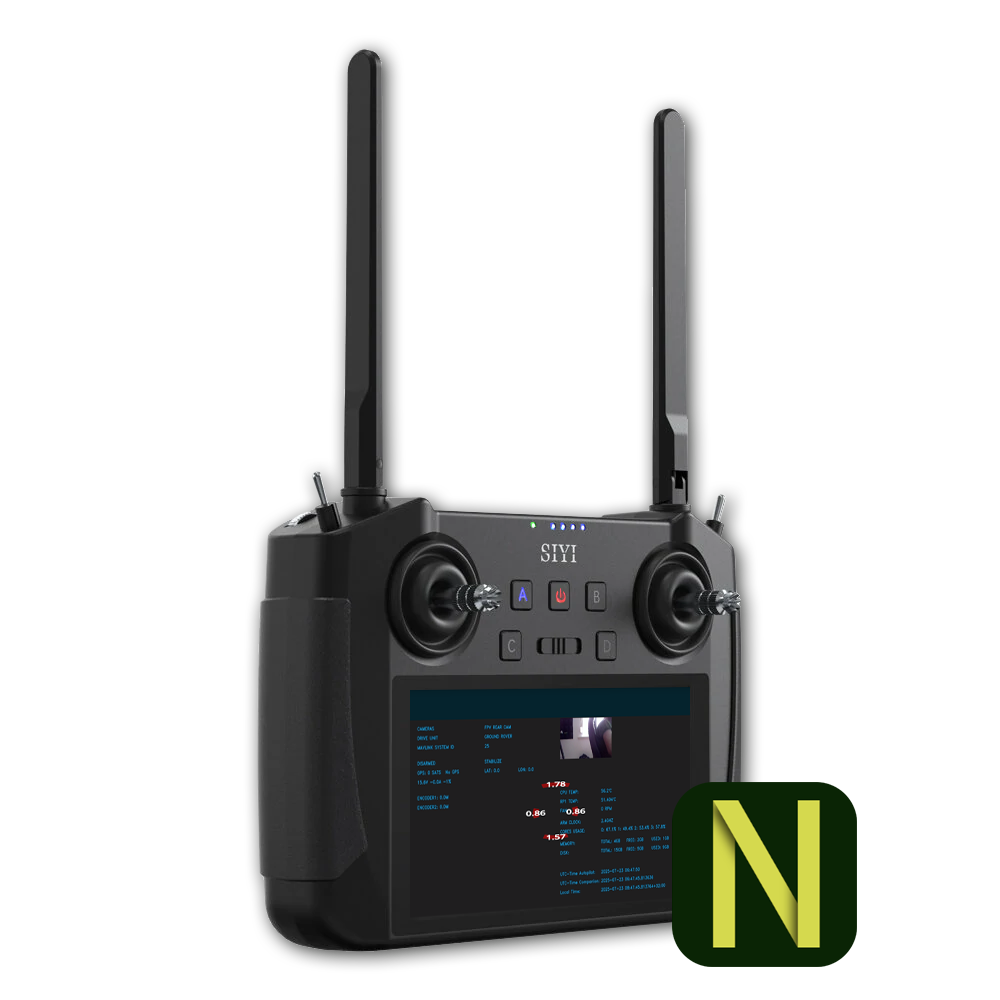

Ground Control Unit – full control in your hands
With the powerful ground station, you can keep an eye on N270 UGV at all times – and have it firmly under control:
The user-friendly software interface provides live video feeds from both the high-precision gimbal camera and the integrated rear view camera. At the same time, you receive all important telemetry data in real time – from position, speed, and distance monitoring to battery status and many other parameters.
The intuitive control interface allows you to execute driving and camera commands with millimeter precision, while the system seamlessly switches between the different views. This enables you to efficiently monitor, control, and document every job—from the first meter to the last measuring point.
Measurement
Precision in hard-to-reach areas:
N270 UGV captures measurement data with millimeter precision—even in the most remote corners. Ideal for laser scanning, TGA surveying, building analysis, or technical inventory surveys.
Inspect
Fast, safe, and risk-free:
Thanks to its high-resolution onboard camera, N270 UGV enables efficient inspection of facilities, pipelines, and structures—even in places that are difficult or impossible for humans to reach.
Maintenance & exploration
Early detection, targeted action:
Whether for preventive maintenance, damage analysis, or the exploration of unknown structures, N270 UGV delivers reliable data before problems arise or important decisions have to be made.
More flexible than any other vehicle in its class.

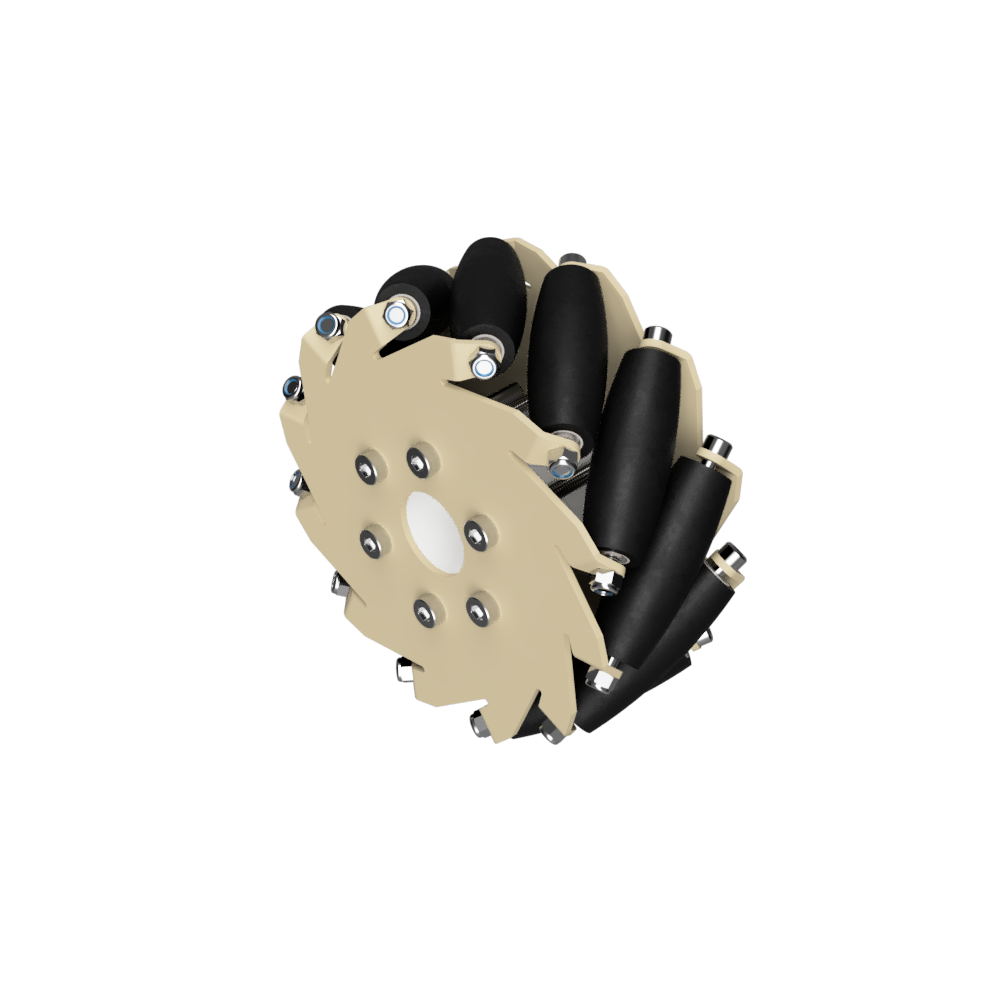

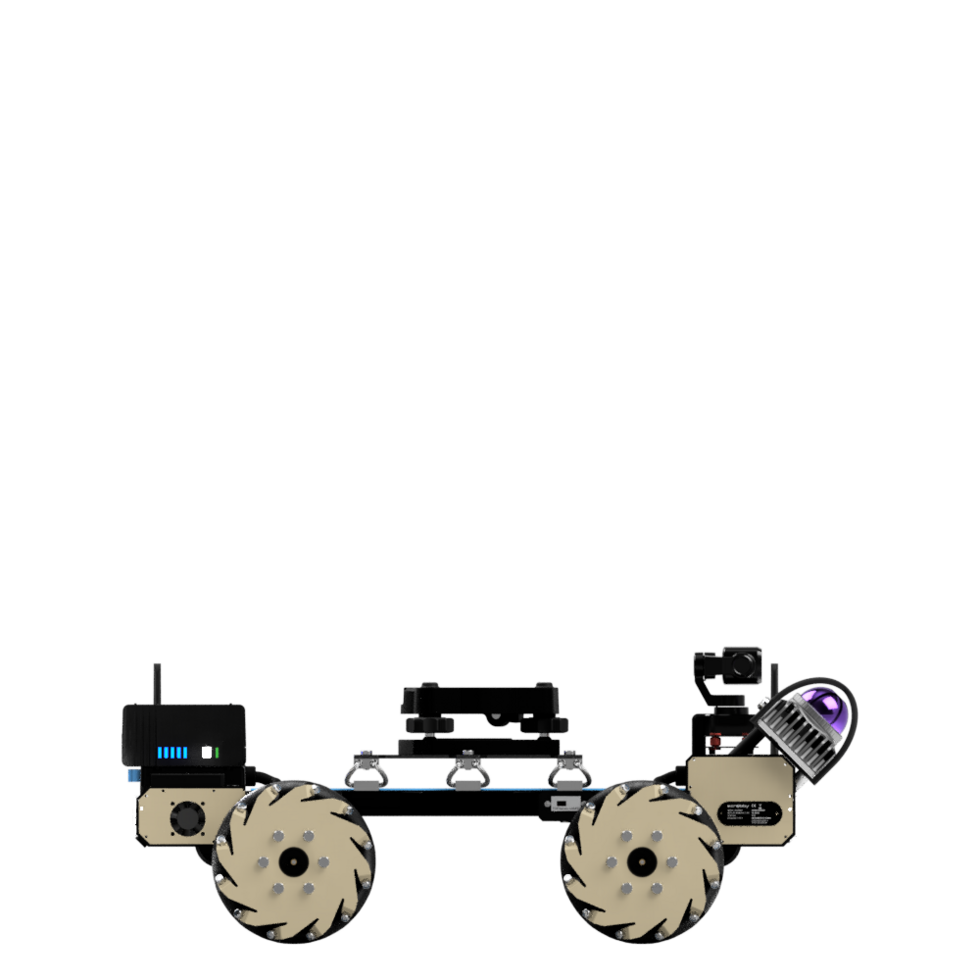

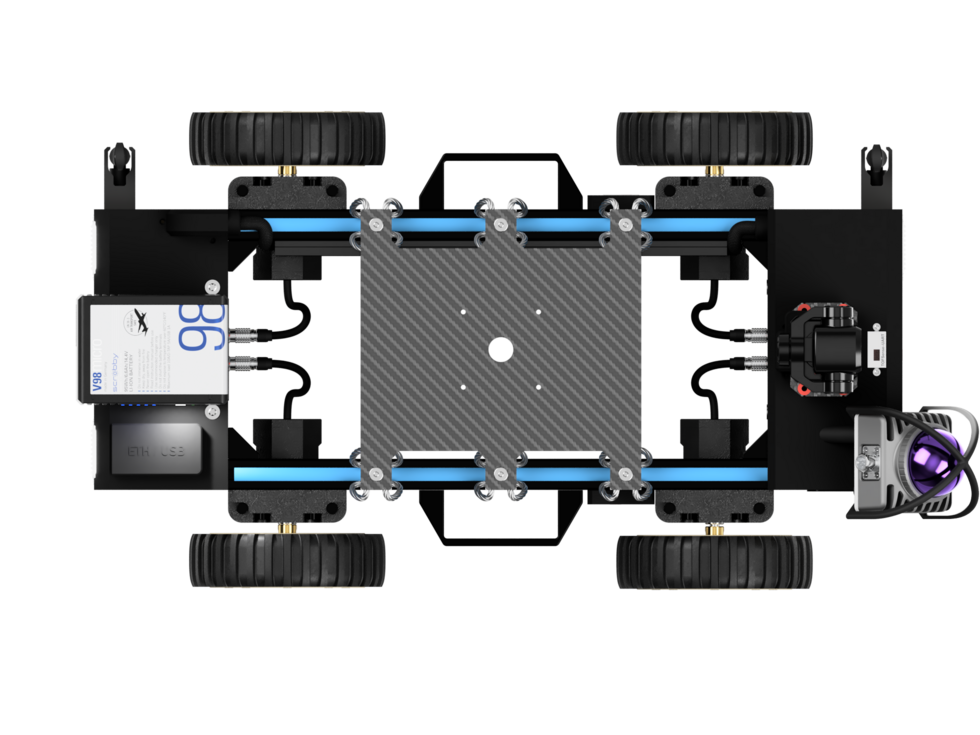

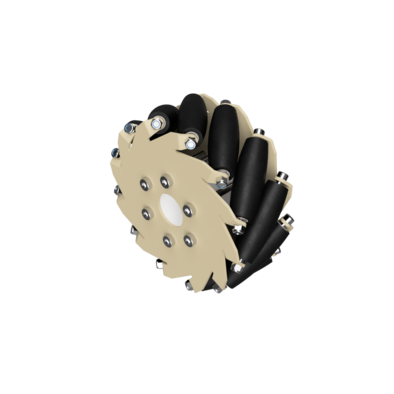

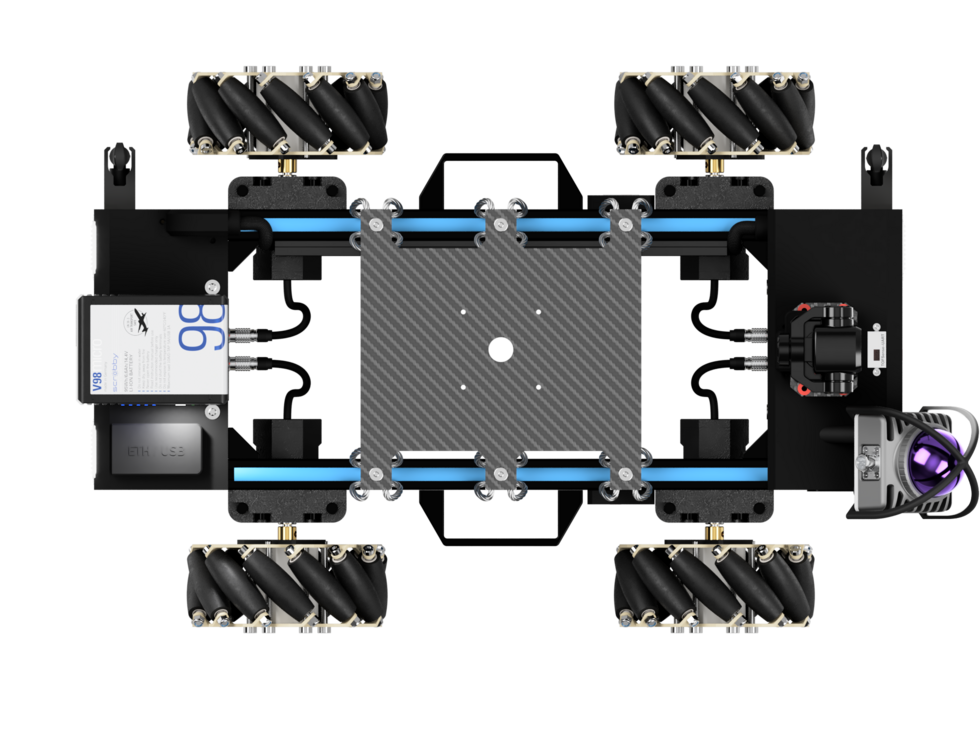

N270 UGV can be converted from classic steering wheels to Omniwheels in no time at all, adapting effortlessly to any operating environment.

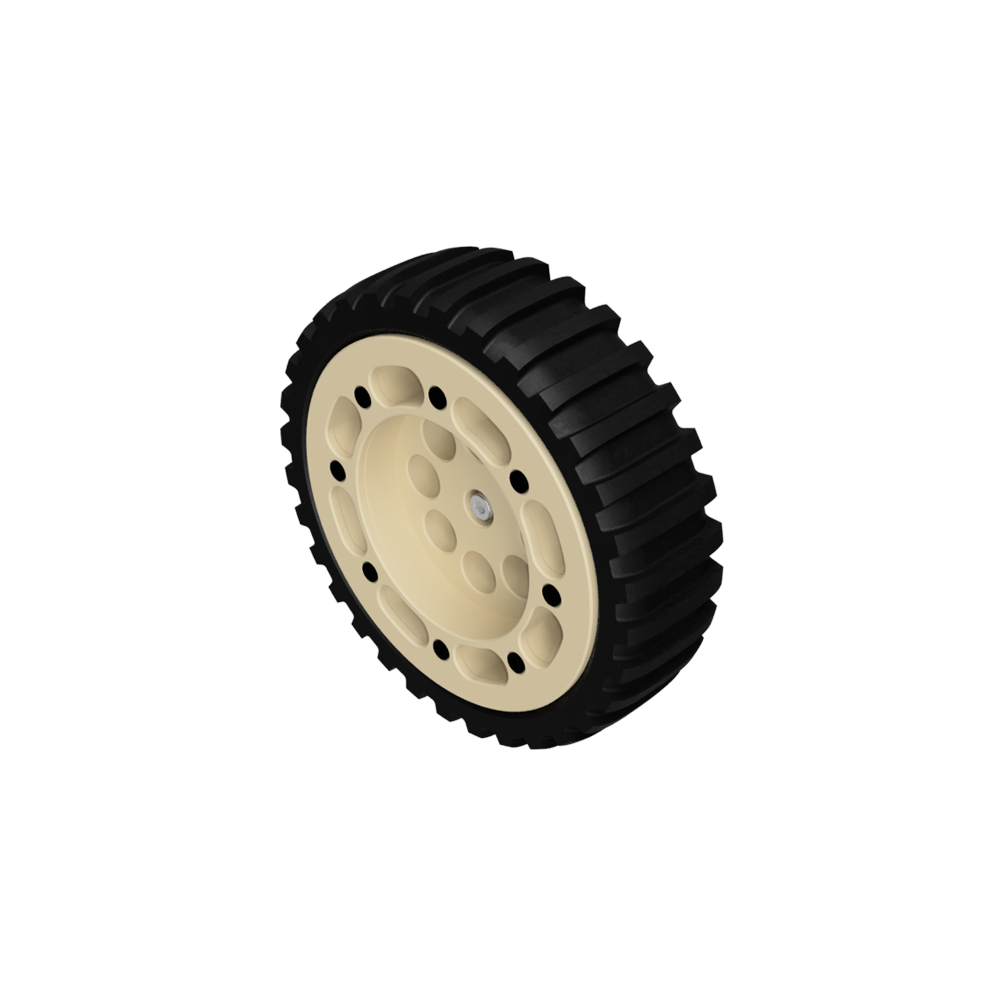

With robust TPU tires, it impresses with precise straight-line driving and maximum stability, while the Omniwheels enable unrestricted mobility in all directions – even in the tightest of spaces.
This flexibility makes N270 UGV the perfect tool for a wide range of requirements and situations.
N270 UGV closes the data gap – for precise digitization, exploration, or inspection
With N270 UGV, you can digitize buildings and technical facilities faster, more securely, and more completely than ever before. Thanks to its compact design and extreme maneuverability, it can reach even tight, dangerous, or inaccessible areas – delivering razor-sharp images or videos and precise measurement data in real time directly to your workplace.
The result: less effort, greater security, maximum data quality—wherever traditional methods reach their limits.
- Distance measurement in four directions with switchable acoustic warning
- Ceiling height measurement with acoustic warning
- 3-axis gimbal camera with night vision mode
- Wide-angle rear view camera
- 4 LED headlights, individually switchable front/rear
- Wheel sensors and IMU are permanently recorded and output as a log file
- Remote control with up to 300 m range indoor
- Compute Module for future computing tasks and AI applications

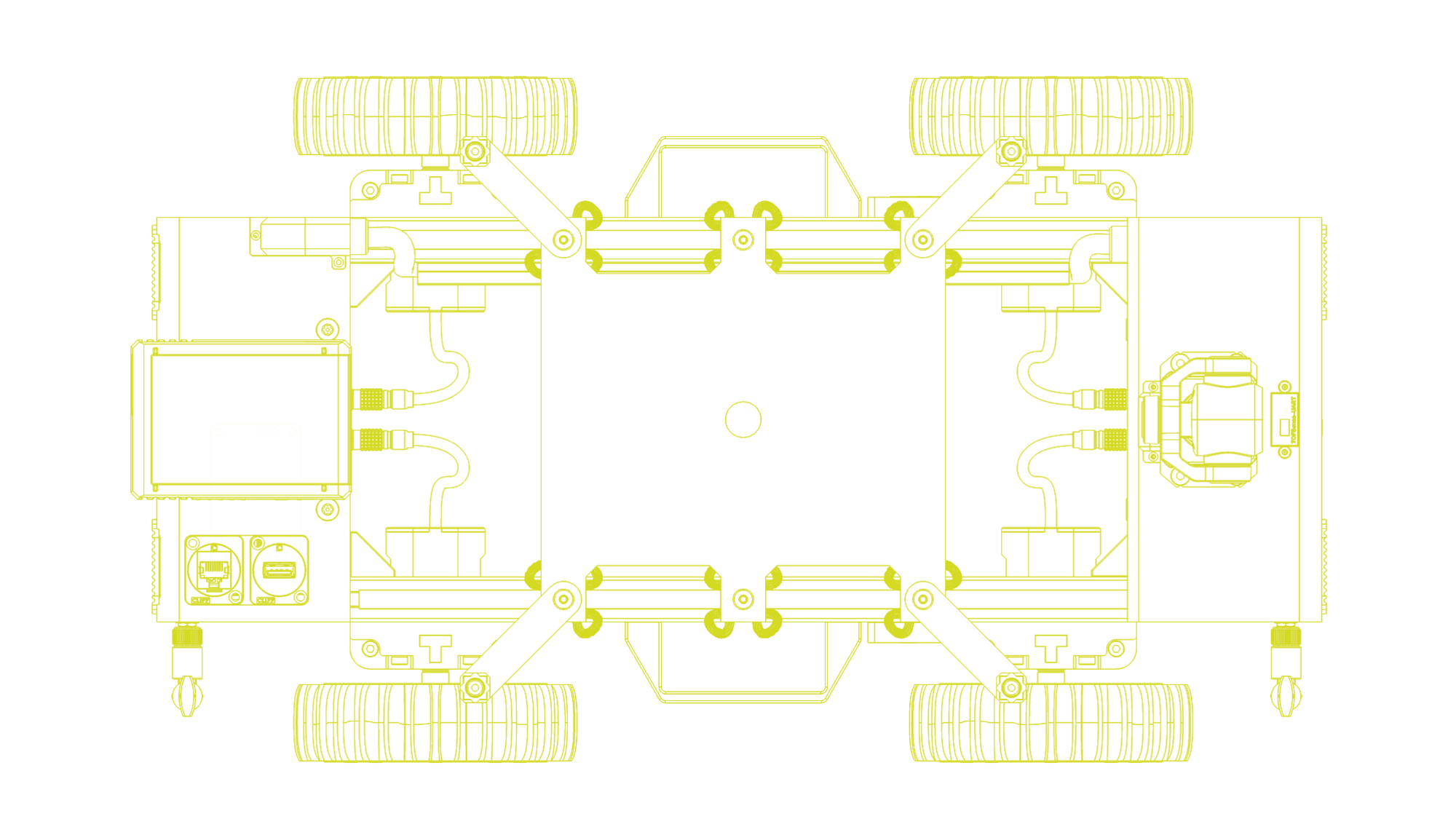

- 4 individually suspended wheel drives with bumpers and encoders

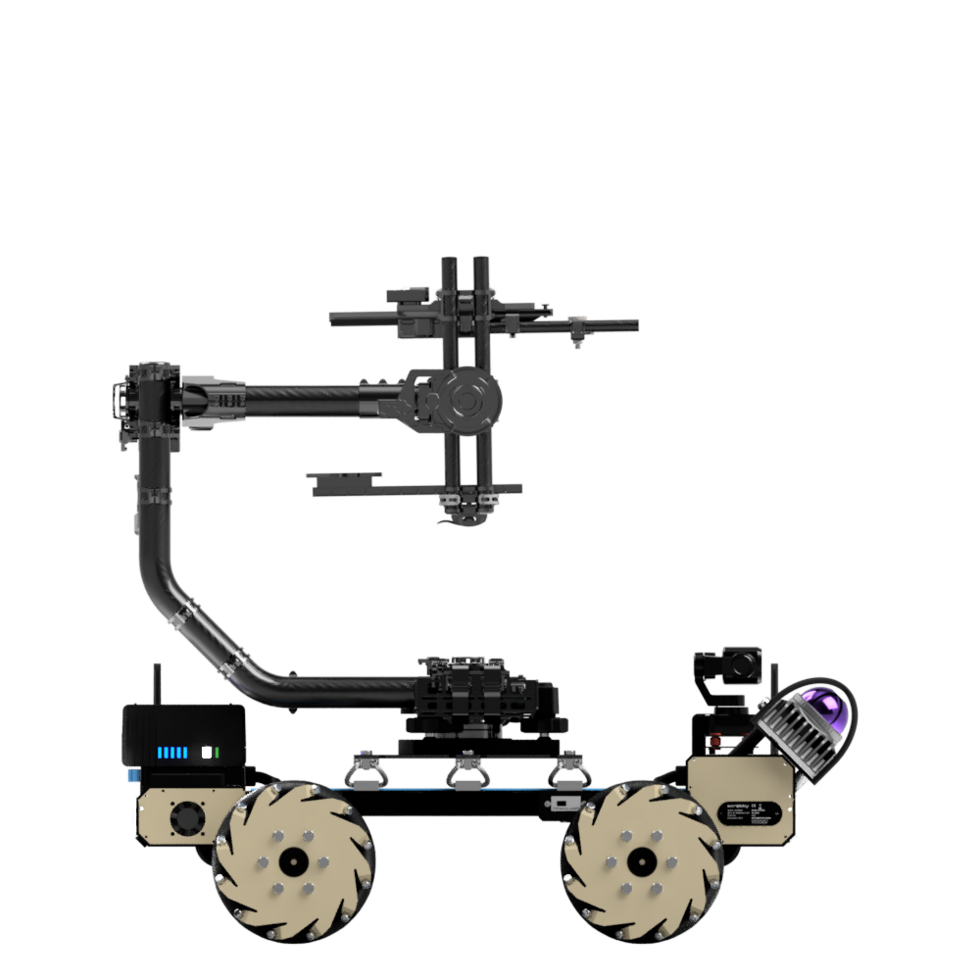

- Vibration-decoupled payload platform with universal mount

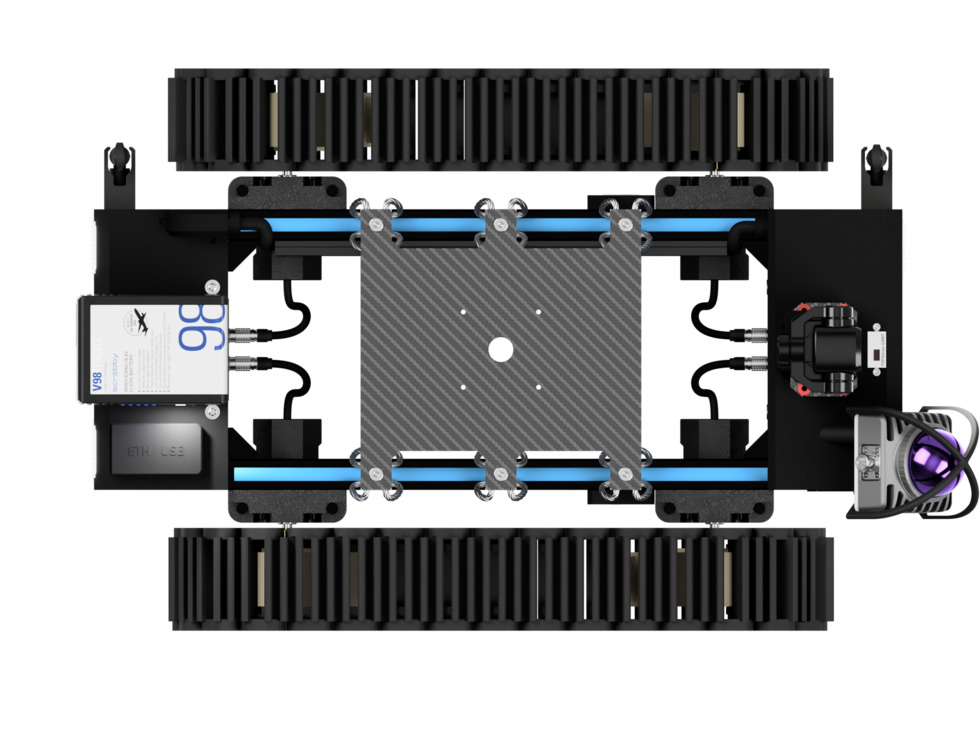

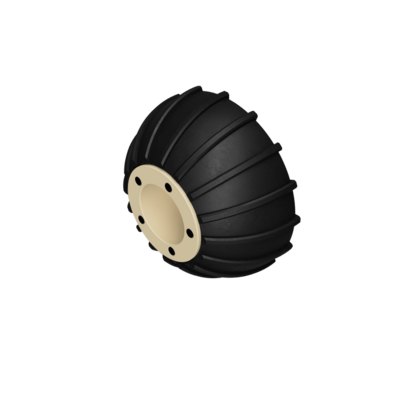

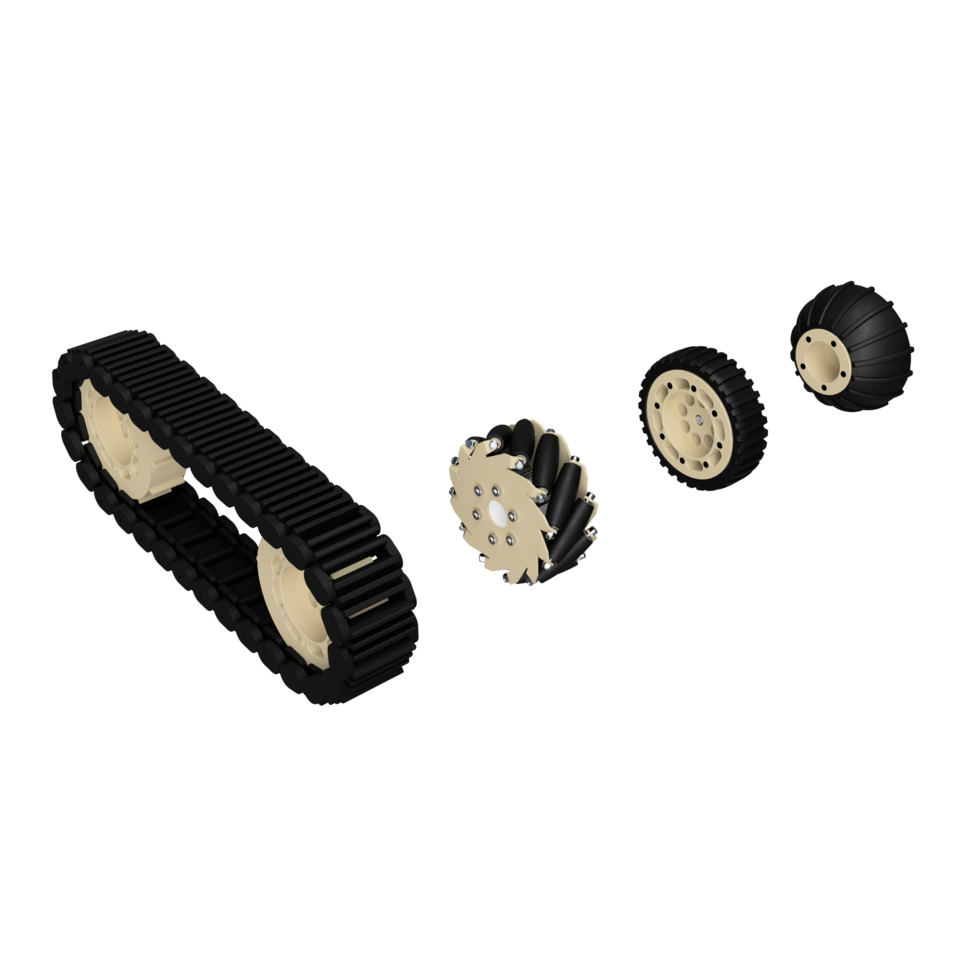

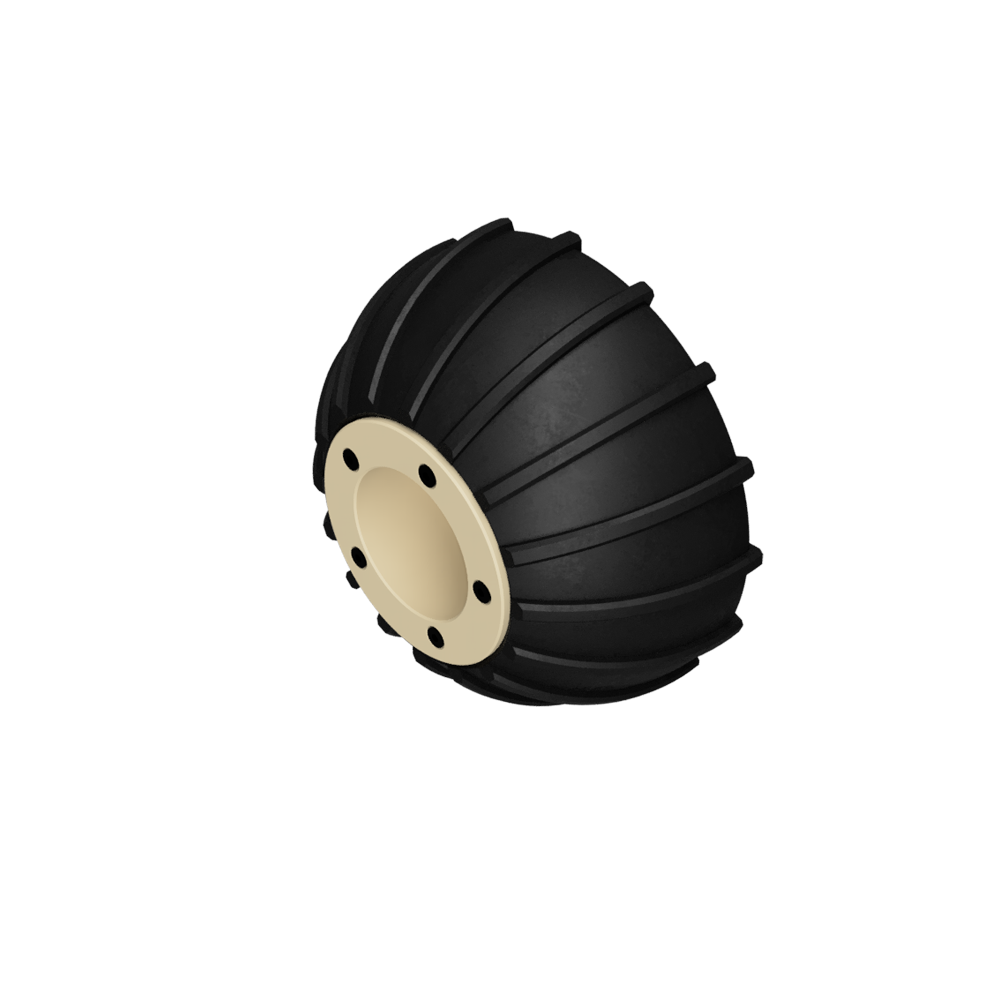

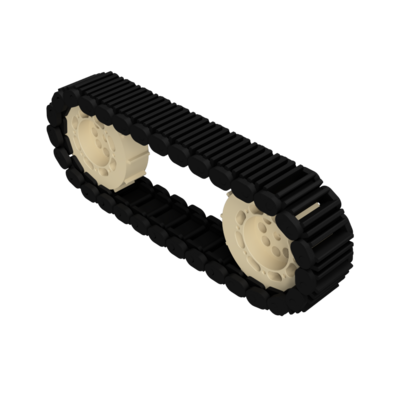

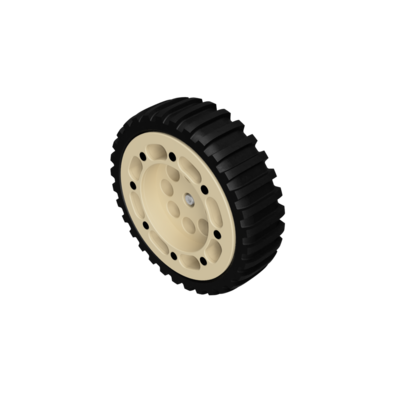

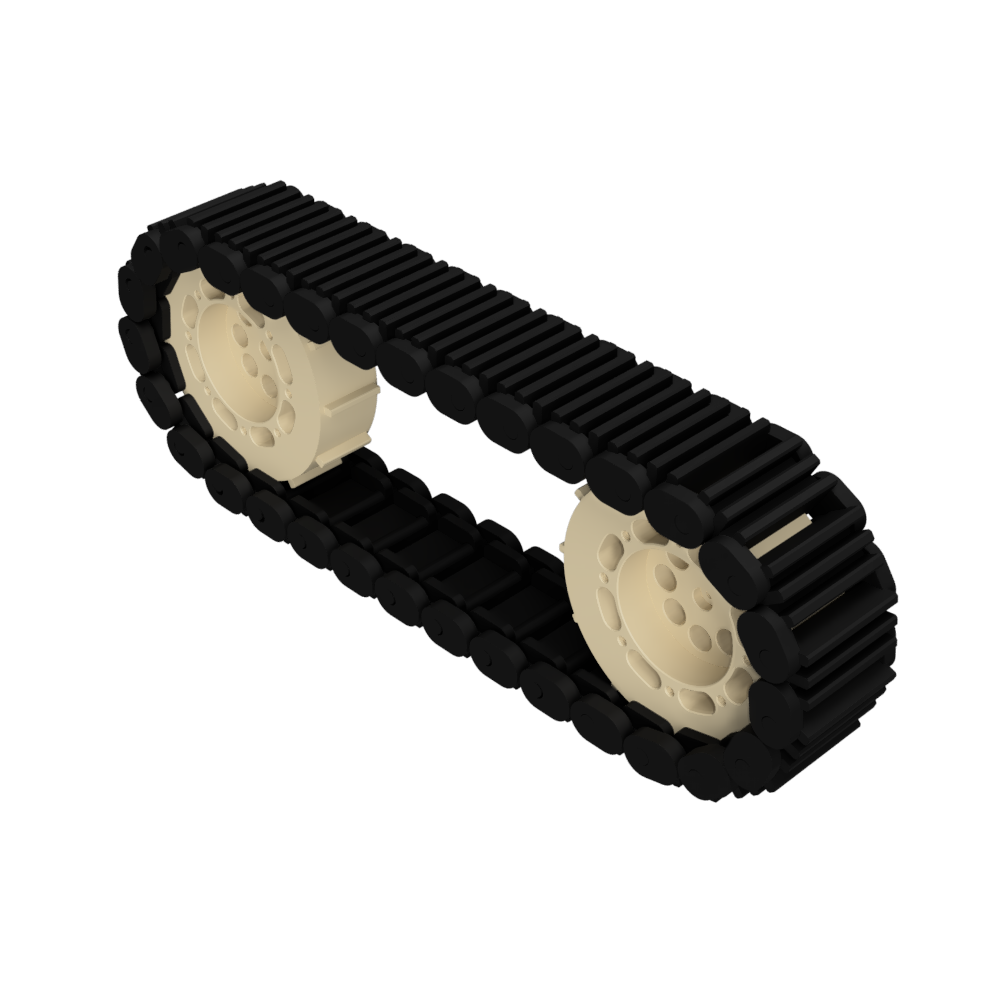

- Interchangeable tires from Omniwheels, Chains or two different TPU tires
- Spring-loaded base plate with centered connection for all tripods, scanner or camera adapters
- Video stream transmission to the controller
- Real-time telemetry OSD
- Video recording in N270 UGV or in the controller
- Onboard Ethernet switch
- Ethernet port for custom protocols and applications
- USB output for custom signal sources or sensors

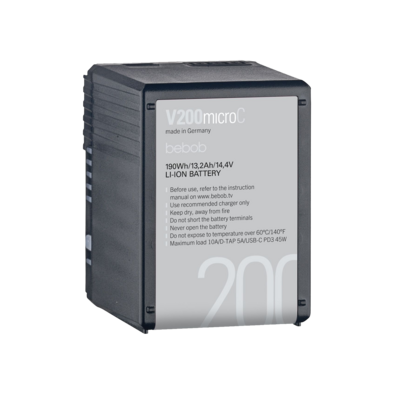

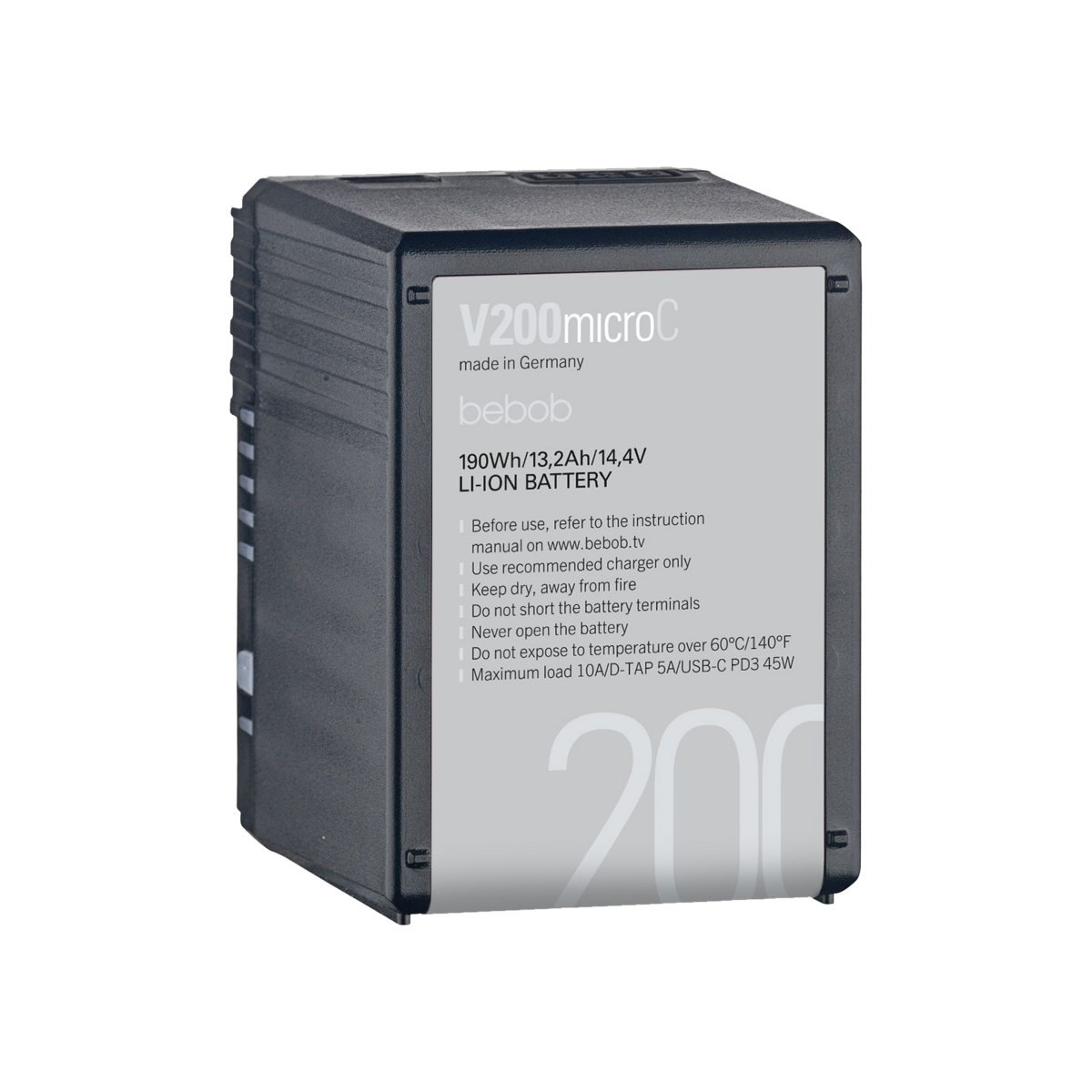

- Standard V-mount battery (Bebob)
Dimensions
- Axle distance 270 mm
- 5 cm ground clearance
- Tires 5" / 12.5 cm Ø
- Mecanum wheels 5" / 12,5 cm Ø
- Empty weight 5 kg
- Max. weight 20 kg
Energy
- Lithium-ion batteries 4S 8,000 mAh, 16,8 V
- Travel time 50 min.
- Operating time 4 h
Environment
- Indoor range:
100 m max. - Outdoor range:
5 km max. - Operating temperature:
-10°C to +45°C
GPS

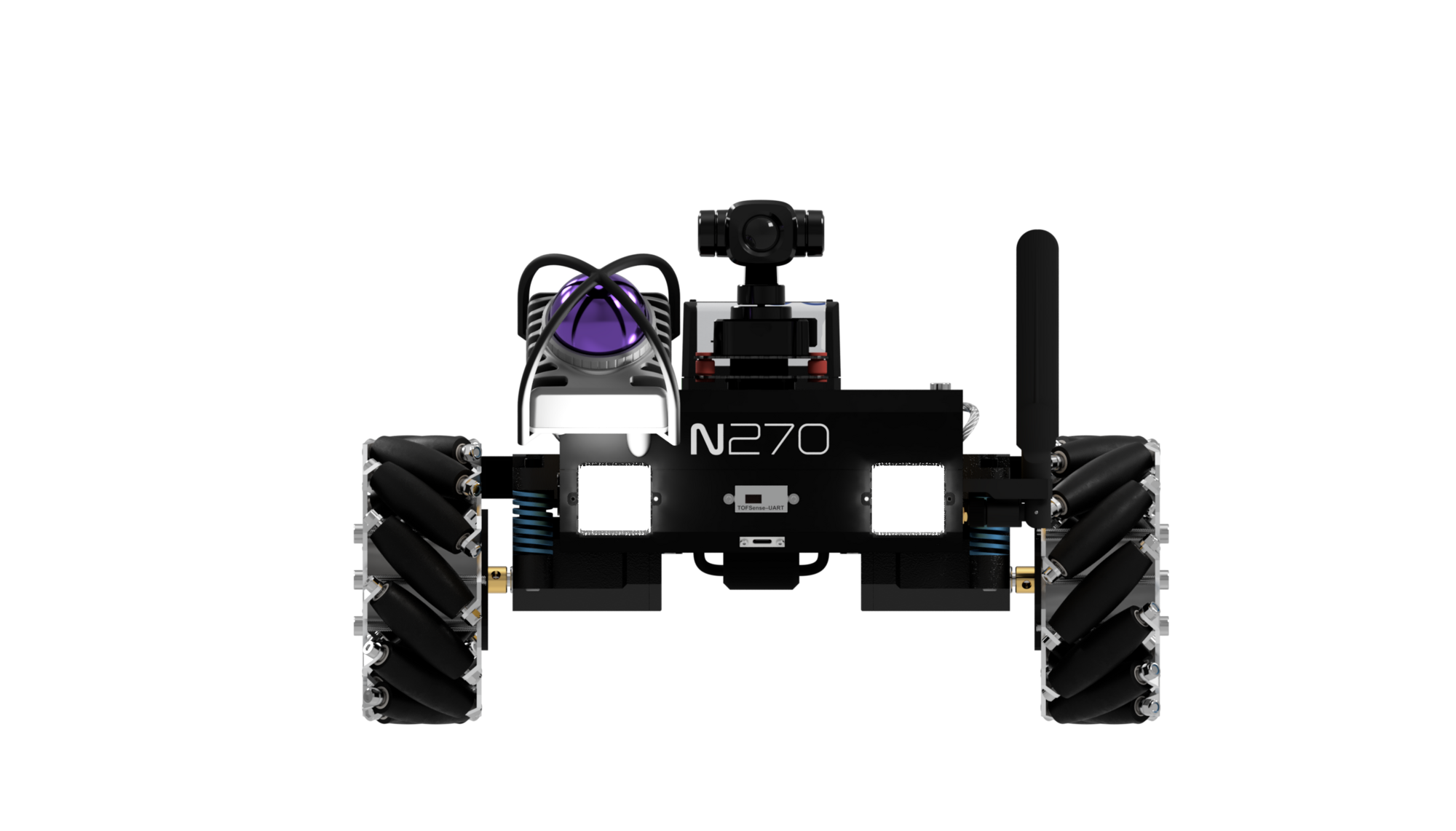

Optionally, the N270-G can be equipped with a high-precision dual-band RTK module. The u-blox F9P chip supports multiple GNSS systems such as BeiDou, Galileo, GLONASS, GPS, and QZSS.

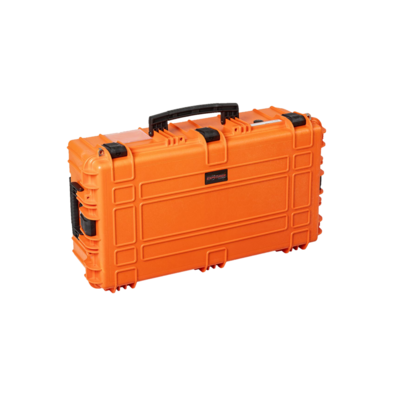

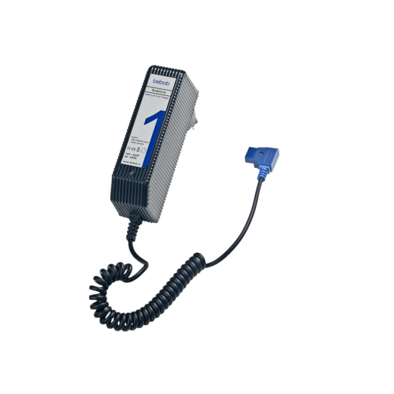

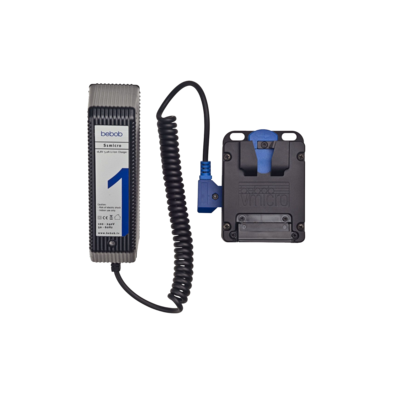

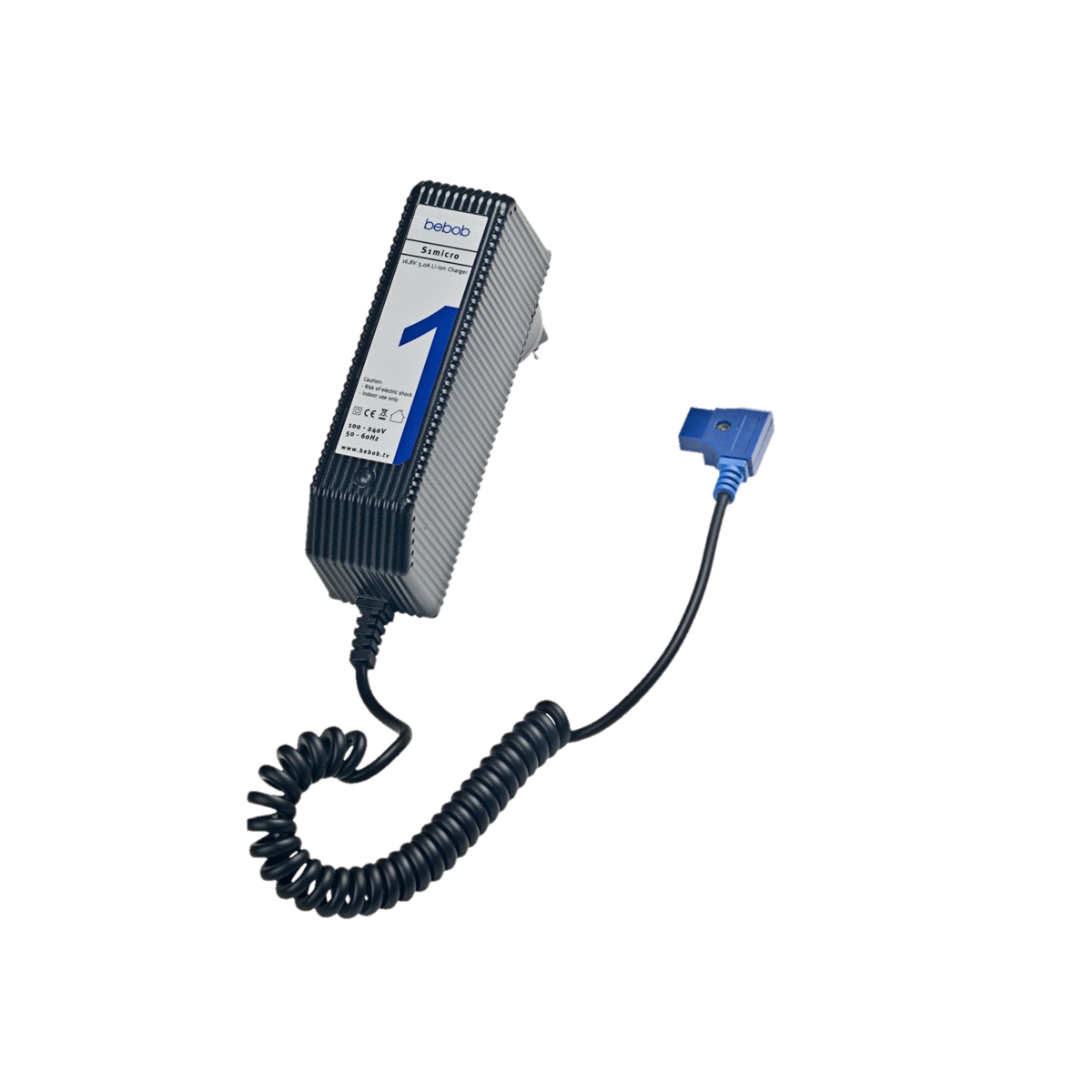

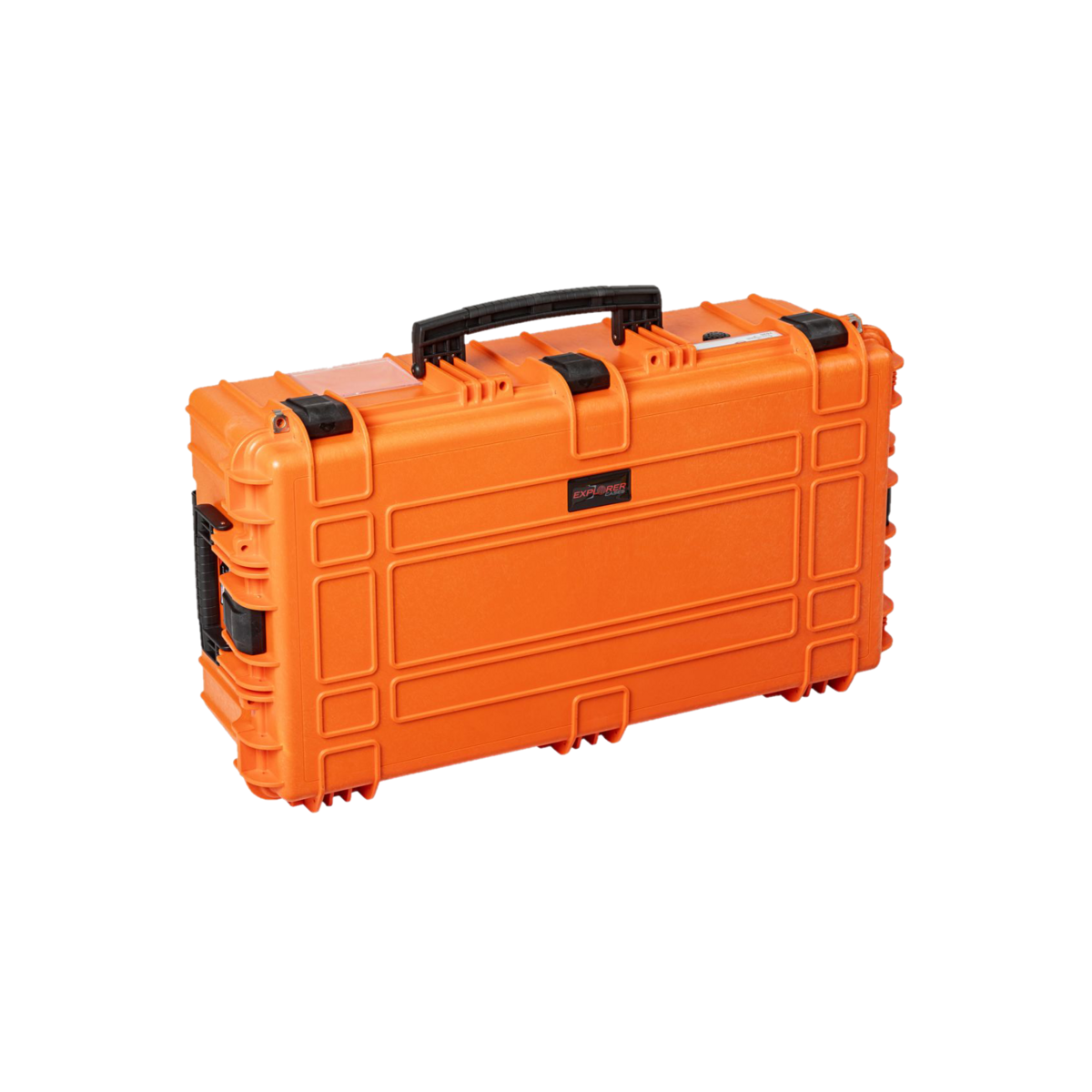

Accessories and spare parts
Whatever you have planned, N270 UGV is equipped or at least prepared for it. In addition to standard spare and wear parts, an extensive range of accessories is also available to expand or supplement your N270 UGV or simply to make your everyday work easier.
